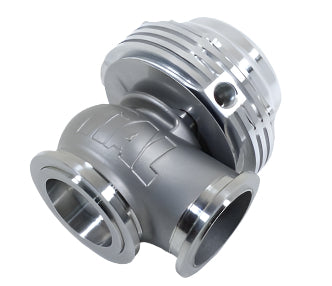

Tial MV-S Wastegate 38mm Silver w/ All Springs | 001931
Tial MVS(38mm) Wastegates feature a High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life, high temperature silicone Nomex reinforced actuator diaphragm, 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at temperature to 900F (483C), Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing, all Stainless Steel hardware, mating weld flanges are 304L. As well as 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports, an ultra compact design fits in very tight spaces, the unit stands only 3.7" tall, more compact than any other external wastegate on the market today and a V-Band inlet and outlet make installation easy.
Sometimes springs come pre-installed from Tial so you will want to verify the spring settings before installation.
| BAR | PSI | DESCRIPTION | O.D. |
|---|---|---|---|
| 0.3 | 4.35 | Green | 1.125 in |
| 0.4 | 5.80 | Red | 1.500 in |
| 0.5 | 7.25 | Yellow | 1.125 in |
| 0.6 | 8.70 | Black | 1.875 in |
| 0.7 | 10.15 | Red + Green | |
| 0.8 | 11.60 | White + Green | |
| 0.9 | 13.05 | Black + Green | |
| 1.0 | 14.50 | Black + Red | |
| 1.1 | 15.95 | Blue + Yellow | |
| 1.2 | 17.40 | Black + Blue | |
| 1.3 | 18.85 | Black + Red + Green | |
| 1.4 | 20.30 | White + Blue + Green | |
| 1.5 | 21.75 | Black + Blue + Green | |
| 1.6 | 23.20 | White + Blue + Yellow | |
| 1.7 | 24.6551 | Black + Blue + Yellow |
