Forced Performance XR RED 79HTZ Turbo (External Wastegate) Subaru 2002-2007 WRX / 2004-2021 STI

Sold out


Gasket set included.

Subaru XR Red

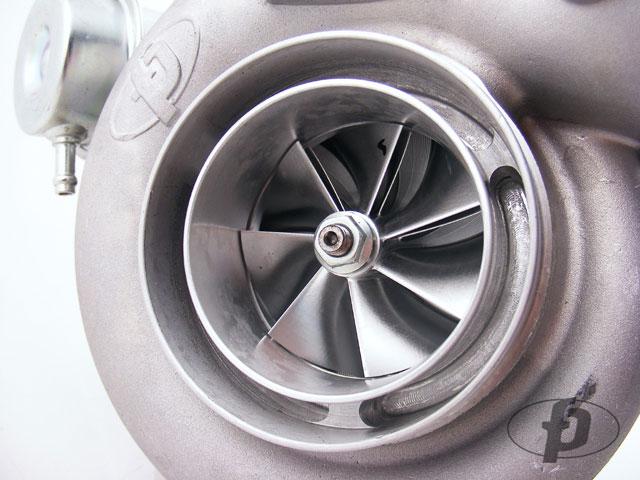

  • Compressor wheel - 79HTZ
  • Flow rating - 65LB per minute
  • CW Measurements - 57MM Inducer / 79MM Exducer
  • TW Measurements - 67.7MM Inducer / 62.2MM Exducer
  • Compressor Housing - 84MM FAP Cover
  • Turbine Housing - FP 10CM Subaru Turbine Housing
  • CHRA - Xona Rotor Ball Bearing
  • Oil Line - Not Included
  • External Wastegate Not Included

Redesigned in 2018, the Subaru XR Red has our HTZ 79 compressor wheel in our 84MM Flow Advancement Port™compressor cover to give you massive, reliable power. In addition to the things you know and love about the journal bearing Red, this unit utilizes our Xona Ball Bearing CHRA for increased durability in situations where you might see low oil flow such as road racing or autocross applications. All Subaru XR turbos are shipped with an oil return flange and a set of -4 water fittings to create custom water feed/return lines.

Info on Ceramic Coating offered by Tirado Custom Coatings

Subaru Oil Line PSA

84MM FAP Cover Requires TGV Delete to fit in stock location

All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
