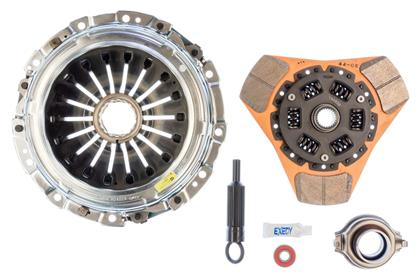

Exedy Stage 2 Clutch Kit Cerametallic Disc Subaru 2004-2021 STI
EXEDY cerametallic clutches are designed to handle the abuse of high power modified engines. Our cerametallic friction material can handle much more abuse than stock type disc assemblies without slipping and fading.
All EXEDY Stage 2 cerametallic clutch discs have sprung center dampers to reduce the impact and shock loads transmitted through the drivetrain. We offer two types of cerametallic discs, “thick” and “thin” along with a cushion button disc.
The “thick” discs have better heat capacity and therefore better durability in demanding applications. Even with the “thick” disc, our three and four puck designs typically have less inertia than a stock disc and work well for street, rally and track use.
The “thin” discs offer greatly reduced inertia to improve shift effort, allow for quicker shifting, and improve synchro durability. These discs are approximately 1/2 the thickness of a stock disc and are recommended for circuit track use only.
Cushion Button Disc
The remarkable Cushion Button Disc combines cerametallic button facing with marcel cushion springs to maintain comfortable driving while supporting a respectable amount of power. It’s smooth engagement is ideal for the street, and thanks to its heavy duty sprung hub dampening assembly, can handle the power of high torque motors. The Cushion Button Disc is currently available for limited applications, however more fitments will be released in the near future.
These clutch covers are designed to achieve a clamping load that is approx. 40% higher than the genuine part allowing a higher torque transmitting capacity. Ductile material is used for all pressure plates and, high burst strength can be achieved in all temperature ranges.
|Disc Diameter (Inches)||9.4|
|Disc Diameter (Millimeters)||240|
|Spline Size (Inches)||1|
|Spline Size (Millimeters)||25.2|
|Torque Capacity (ft/lbs.)||386|
