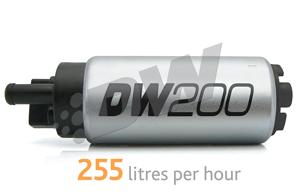

DeatschWerks DW200 Fuel Pump Subaru 2002-2007 WRX / 2004-2007 STI
by
$109.00
SKU dwk9-201-0791
-
Everything You Need...Nothing You Don’t.
Introducing the DW200 in-tank fuel pump which has all the all the benefits of the DW300 in a lower priced, lower flowing package.
- Flows 255 liters per hour (67 gallons per hour)
- In-tank application specific fitment
- Ethanol compatible
- 3-year no-fault warranty
- Quiet and reliable turbine impeller
Universal pump kit includes:
- 2"x2" sock
- Electrical connector
- 4" of fuel line
- Miscellaneous hardware
Fuel Pump Technical Information
The DW200 fuel pump has been specifically designed and tested for compatibility with gasoline and ethanol. DeatschWerks products are manufactured and sold for non-road vehicles used solely for competition.
DW200 at 13.5 volts
| PSIG | AMPS | LPH | BHP |
|---|---|---|---|
| 0 | 7.4 | 355 | 1120 |
| 30 | 8.6 | 265 | 865 |
| 40 | 9.2 | 255 | 830 |
| 50 | 9.7 | 240 | 780 |
| 60 | 10.4 | 225 | 735 |
| 70 | 10.9 | 210 | 685 |
| 80 | 11.6 | 190 | 620 |
| 90 | 11.9 | 170 | 555 |
| 100 | 12.7 | 155 | 520 |
| Weight | 12.6oz (360grams) |
| External Materials | Electroplated steel |
| Inlet Fitting | 7.7mm ID, 11.0mm OD |
| Outlet Fitting | 5/16" hose clamp |
| PRV Activation | 100psi |
| Impeller Design | Single Scroll Composite Turbine |
| Connector Terminal | Spade pos/neg |
| Min Voltage Input | 6 volts |
| Max Voltage Input | 18 volts |
| Current Draw (40 psi) | 9 amps (13.5v) |
| Current Draw (80 psi) | 12 amps (13.5v) |
