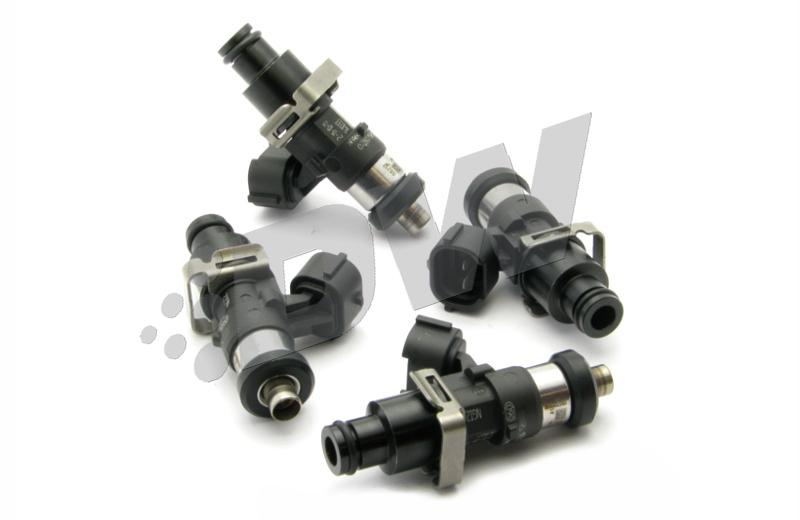

DeatschWerks 2200cc Fuel Injectors Top Feed Subaru 2002-2014 WRX / 2007-2019 STI
DeatschWerks | SKU:
dwk16S-01-2200-4
Sold out
$859.00
Unit price
/
Unavailable
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Description
Description
- 100% drop-in fitment
- Every set is flow-balanced at 5 different pulse widths
- Not for use with MTBE
All DeatschWerks injectors feature the following:
- E85 compatibility
- Flow rates and set balancing in-house by DeatschWerks
- Flow balanced to within 1-2% (flow report included)
- Excellent spray pattern and atomization for optimized idle and tuning
- Technical assistance and tuning data available via phone or email
- 3-year comprehensive warranty
| Fuel Pressure Range | 40-80 psi |
| Minimum Pulse Width | 1.0 ms |
| Maximum Duty Cycle | 93% |
| Coil Impedance | 12.4 ohm |
| Injector Type | Bosch EV14 (compact) |
| Connector Type | us-car |
Nominal Static Flow Rate
PSI > |
43 |
58 |
70 |
80 |
90 |
100 |
cc/min |
2180 |
2768 |
3027 |
3035 |
3249 |
3400 |
lb/hr |
207.6 |
263.6 |
288.3 |
289 |
309.4 |
323.8 |
Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order.
